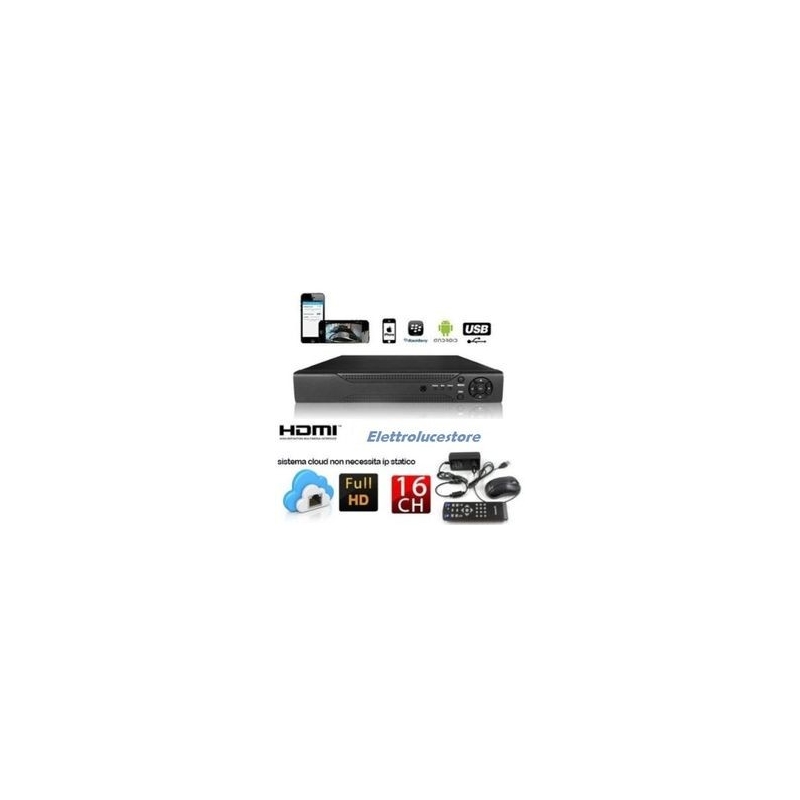

dvr 16 canali turbo ingressi video dw1 videosorveglianza full hd 1080p h264 registratore nuovo ds7216hghisha

DVR Turbo HD triple hybrid DVR Turbo HD triple hybrid serie DS-7200HGHI-SH con 16 ingressi video su connettore BNC di tipo analogico CVBS o HD-TVI in modalità, adaptive access e 2 canali IP Hikvision sino a 25ips 1080P.

Algoritmo di compressione H.264 con codifica di tipo Dual Stream, sino a 25 ips/ch in HD, 12ips/ch in FullHD, supporta smart VQD, intrusion detection e virtual plane traversing sui canali analogici.

Supporta 2 canali IP sino a 25ips in 1080P, 4 ingressi audio, canale voice talk, 1 uscita video VGA (FullHD), 1 uscita video HDMI (FullHD), 16 ingressi di allarme, 4 uscite di allarme, porta RS485, dati Up to Coax, scheda di rete Ethernet 10/100/1000M, sino a 128 connessioni simultanee, 128Mbps totali in rete, web server multibrowser, sino a 2HDD SATA da 4TB, 2 porte USB, alimentatore esterno 12Vdc, consumo 20W, temperatura di esercizio da -10C sino a +55C.

Garanzia: totale 1 Anno

SCHEDA TECNICA

Video/Audio Input

Video Compression:

H264

Analog and HD-TVI Video Input:

4-ch, BNC interface (1.0Vp-p, 75 Ω)

Audio Compression:

G.711u

Audio Input:

16-ch

Audio Input Interface:

RCA (2.0 Vp-p, 1 kΩ)

Two-way Audio:

1-ch (Audio In)

Video/Audio Output

VGA Output:

1-ch, resolution:
1920×1080P/60Hz,1280×1024/60Hz,1280×720/60Hz, 1024×768/60Hz

HDMI Output:

1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Recording resolution:

Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF;
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA

Frame Rate:

1/16 fps ~ Real time frame rate

Video Bit Rate:

32 Kbps-6 Mbps

Stream Type:

Video/Video&Audio

Audio Output:

1-ch RCA(Linear, 1kΩ)

Audio Bit Rate:

64kbps

Dual Stream:

Support

Playback Resolution:

1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF

Synchronous Playback:

16-ch

Hard Disk Driver

Interface Type:

2 SATA Interface

Capacity:

Up to 4TB capacity for each disk

External Interface

Network Interface:

1 RJ45 10M/100M/1000M adaptive Ethernet Interface

USB Interface:

2 USB 2.0 Interfaces

Serial Interface:

1 RS-485 interface
